Aluminium Sheet Plate Coils

ISO 9001:2008 Certified Repute Steel & Engg Co is leading STOCK-HOLDER, SUPPLIER AND EXPORTER OF Aluminium Plates, Aluminium Alloy Plates, Aluminium Sheets, Aluminium Alloy Sheets IN ALL Dimensions, Grades and tempers

There is continuously increasing demands of aluminium plates & sheets in aerospace industries, defense industries, fabrication, engineering equipment, construction & décor industries. Light Weight, good corrosion resistance, low cost, easy to use makes aluminium demanding in all major industries.

We have a huge stock of Aluminium Sheets, Plates, Coils of Jindal Aluminium Ltd, HINDALCO make, BANCO, AALCO, GALCO, BALCO, VIRGO make for quick supply of materials in very short time.

Repute Steel & Engg Co. is reliable source for Aluminium Plates, Aluminium Sheets, and Aluminium Alloy Coils from decade and we are supplying to various companies in India, USA, Gulf Region, Asian countries and worldwide.

Specification of Aluminium & Aluminium Alloy Sheet Plates Coils

Aluminium Alloy Sheet Plates Grade

ASTM B209 1050, 1060, 1100, 1235, 3003, 3004, 3105, 5052, 5754, 6061, 8011

Aluminum Sheet Plates Temper

O, H12, H14, H16, H18, H22, H24, H26, H32, H112

Aluminum Plate Sheet Thickness

0.5mm-150mm

Coil Plate Sheet Width

500-2500mm

Standard size of aluminium sheet, plates, coils

2000 x 1000, 2500 x 1250, 3000 x 1500, 4000 x 2000, 2500 x 6000, 2500 x 8000, 1250 x coil, 1000 x coil,1500 x coil, cut length

Aluminum Sheet plate surface Coating

Polyester, Fluorocarbon, polyurethane and epoxy coating

Aluminum Sheet plate Coating finish

PVDF, POLYESTER(PE), PVC lamination,

Surface finish of aluminium sheet plate coils

Bright, polished, hair line, brush, sand blast, checkered, mirror, diamond, tread, embossed, glossy, stucco, etching, pattern, Silver, HR, CR, Matt etc.

Total coating thickness on sheet plate

PVDF coating: More than 25 micron; Polyester coating: More than 18 micron

Coatings on Aluminium Sheet Plates

Anodizing, Powder Coating, Electroplating

Aluminum Sheet plate standard Stock Sizes

1ft x 1ft, 1ft x 2ft, 1ft x 4ft, 2ft x 2ft, 2ft x 4ft, 4ft x 4ft, 4ft x 8ft, 4ft x 10ft or Cut to Size or Custom Shape.

Aluminum Sheet Outer packing

Export standard, wooden pallet, seaworthy

Contries We are Exporting Aluminum Sheet Plates, Coils

Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Spain, Canada, USA, Egypt, Iran, India, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, etc.

Stockholder  Distributors & Exporter OF HINDALCO, NALCO, JINDAL, BALCO, GALCO, VIRGO, MANKASIA AND METENERE

Aluminium Mirror Sheet plate coil, Brushed Aluminium Sheet plate coil, Anodized Aluminium Sheet plate coil, Checkered Aluminium Sheet plate coil, Color Coated Aluminium Sheet plate coil, PVC Coated Aluminium Sheet plate coil, Aluminium Extruded Sheet plate coil, Aluminium Stucco Sheet plate coil, Aluminium Patterned Sheet plate coil, Aluminium Embossed Sheet plate coil, Aluminum Roofing Sheet plate coil, Aluminum Drilling Entry Sheet plate coil

Aluminum Closure Sheet plate coil, Aluminium Corrugated Sheet plate coil, Aluminium Flat Sheet plate coil, Hindalco Aluminium Sheet plate coil, Jindal Aluminium Sheet plate coil, Aluminium Sheet plate coil, Hot Rolled Aluminium Sheet plate coil, Hot Forming Aluminium Sheet plate coil, Cold Forming Aluminium Sheet plate coil, Cold Rolled Aluminium Sheets plate coil, Automotive Aluminum Alloy Sheet plate coil, Aluminum alloy Sheet plate coil, Aluminium 6061 sheet plate, Aluminium 6063 sheet plate, Aluminium 6082 sheet plate, Aluminium 6083 sheet plate

Aluminium Sheets Plate Coils Product Range

Alloy No.

Thickness

(mm)

Width
(mm)

Length
(mm)

Temper

A1050, A1060, A1070, A1100

0.2 - 200

20-2500

20-8000

O, H12, H22, H14, H16, H18, H24, H26

A3003, A3105, A3004

0.2 - 200

20-2500

20-8000

O, H14, H18, H24

A5052, A5005, A5083, A5086, A5754

0.2 - 200

20-2500

20-8000

O, H18, H24, H32, H34, H111, H112

A6061, A6082, A6063

0.2 - 200

20-2500

20-8000

T4, T6, T651

A8011

0.2 - 200

20-2500

20-8000

O, H12, H22, H14, H16, H18, H24, H26

ALUMINIUM RODS ; ROUND BAR ; HEX BARS ; SQUARE BARS

BEING REPUTED VENDOR REPUTE STEEL IS ONE STOP SOLUTION FOR ALL COMPANIES TO PROCURE ALUMINIUM AND ALUMINIUM ALLOY ROUND BARS, HEX BARS, SQUARE BAR, RODS. WE ARE ISO 9001:2008 CERTIFIED SUPPLIER AND EXPORTER OF ALUMINIUM IN INDIA AND OUTSIDE COUNTRIES FROM LAST 10 YEARS.

ALUMINIUM HAS BEST COROSSION RESISTANCE, DURABALITY, AND IT IS LIGHT WEIGHT. DUE TO THIS ADVANTAGES ALUMINIUM IS HIGHLY DEMANDED IN ALL INDUSTRIES INCLUDING DEFENCE, NUCLEAR, AEROSPACE INDUSTRIES, FABRICATION, ENGINEERING EQUIPMENTS, CONSTRUCTION & DÉCOR INDUSTRIES

WE ARE PROVIDER OF ALL RANGE OF ROUND BAR, HEX BARS, SQUARE BARS, RECTANGULAR BARS, And ALL TYPES OF RODS IN ALUMINIUM & ALUMINIUM ALLOY GRADES FOR INDUSTRIAL & COMMERCIAL APPLICATION PURPOSE.

Specification ::

SIZE:

THICKNESS : OUTER DIAMETER; 1 MM  TO 400 MM

LENGTH : 10 FT, 12 FT, 3 MTR, 6 MTR… CUT LENGTH

TYPES :: Extruded Rods, Drawn Rods

ALUMINIUM ROUND BAR, square bar, hex bar SPECIFICATION

Aluminium Round Bar, Hex Bar, Square Bar Standard

ASTM, ASME, AMS, ASTM B221M, GB/T 3191, JIS H4040, ASTM B221, AMS QQ-A-200/9

Aluminium Round Bar, Hex Bar, Square Bar Temper

O, H12, H14, H16, H18, H22, H24, H26, H32, H112

Aluminium Hex Bar, Square Bar sizes

Diameter:0.1-600 mm, 10x10 to 200x200, AF 5 mm to AF 100 mm

Aluminium Round Bar, Hex Bar, Square Bar Length

1-12 m, Random, Fix & Cut Length or as per clients’ requirement

Aluminium Round Bar, Hex Bar, Square Bar Finish

Bright, Polish, Silver, Rough, Powder Colour Coat

Aluminium Round Bar Hex Bar, Square Bar Surface

Anodized, Polished, hair line, brush, Matt, Mirror, Mill finished, Bright finish, paper interleaved

Aluminium Round Bar, Hex Bar, Square Bar Packaging Details

Export standard package: bundled wooden box, suit for all kinds of transport or As per indicated by buyer

ASTM B221 Aluminium Round Bar Outer packing

Export standard, wooden pallet, Seaworthy

Aluminium & Aluminium alloy Round Bar, Hex Bar, Square Bar Grades

• Aluminium Round Bar, Hex Bar, Square Bar Grade 24345
• Aluminium Round Bar, Hex Bar, Square Bar Grade 24534
• Aluminium Round Bar, Hex Bar, Square Bar Grade 65032
• Aluminium Round Bar, Hex Bar, Square Bar Grade 63400
• Aluminium Round Bar, Hex Bar, Square Bar Grade 64430
• Aluminium Flat Bar, Hex Bar, Square Bar Grade 63401
• Aluminium Round Bar, Hex Bar, Square Bar Grade 74530
• 1100 Aluminum Round Bar, Hex Bar, Square Bar
• 1050 Aluminum Round Bar, Hex Bar, Square Bar
• Aluminium 2014 T6 Round Bar, Hex Bar, Square Bar
• 2017-T4 Aluminum Round Bar, Hex Bar, Square Bar
• 2024-T351 Aluminum Round Bar, Hex Bar, Square Bar
• 5083 Aluminum Round Bar, Hex Bar, Square Bar
• Aluminium 6061 T6 Round Bar, Hex Bar, Square Bar
• Aluminium 6082 T6 Round Bar, Hex Bar, Square Bar
• Aluminium 6351 T6 Round Bar, Hex Bar, Square Bar
• 6063 Aluminium Round Bar, Hex Bar, Square Bar
• 6101 Aluminum Round Bar, Hex Bar, Square Bar
• Aluminium Alloy 6066 Round Bar, Hex Bar, Square Bar
• 6005 Aluminum Round Bar, Hex Bar, Square Bar
• Aluminium 7075 T6 Round Bar, Hex Bar, Square Bar
• 7050 Aluminum Round Bar, Hex Bar, Square Bar

Countries, We are Exporting Aluminium Round Bar, Hex Bar, Square Bar

Brazil, Singapore, South Africa, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Spain, Canada, USA, Egypt, Iran, India, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, Iraq, Qatar etc.

STOKIEST, SUPPLIER, DISTRIBUTORS & EXPORTER OF HINDALCO, NALCO, JINDAL, THYSSENKRUPP, BALCO, VIRGO, MANKASIA, METENERE, INDIA ORIGIN & INTERNATIONAL BRANDS

European Standard

BS (OLD)

USA (AA)

GERMANY (DIN)

ISO

IS

Canadian

EN AW-1050 A

1E

1050

Al99.5

Al99.5

19500, 19501

1 S

EN AW-1070 A

–

1070

Al-99.7

Al-99.7

19700

–

EN AW-1100

IC

1100

Al-99.0

Al-99.0

19000

2 S

EN AW-2011

FC1

2011

AlCuBiPb

AlCu6BiPb

–

28S

EN AW-2014

HE15

2014

AlCuSiMn

AlCu4SiMg

24345

B26S

EN AW-2024

–

2024

AlCuMg2

AlCu4Mg1

–

24 S

EN AW-3003

N3

3003

AlMnCu

AlMn1Cu

31000

3 S

EN AW-3103

–

3103

–

AlMn1

–

–

EN AW-6101A

E91E

6101

E AlMgSi 0.5

E AlMgSi(A)

63401

D50S

EN AW-6005

–

6005

AlMgSi0.7

AlSiMg

62400

C51S

EN AW-6351

HE30

6351

AlMgSi1

AlSiMg0.5Mn

64430

B51S

EN AW-6060

–

6060

AlMgSi 0.5

AlMgSi

–

–

EN AW-6061

HE20

6061

AlMgSiCu

AlMg1SiCu

65032

65S

EN AW-6063

HE9

6063

AlMgSi0.5

AlMg0.7Si

63400

50S

EN AW-6082

HE30

6351

AlMgSi1

AlSi1MgMn

64430

B51S

CHEMICAL COMPOSITION OF ALUMINIUM ALLOYS

ALUMINIUM Alloy

%
Si

%
Mg

%
Mn

%
Cu

%
Fe

%
Cr

%
Zn

%
Ti

%
Others

%
Al

EN AW-1050 A

0.25
Max

0.05
Max

0.05
Max

0.05
Max

0.40
Max

–

0.07
Max

0.05
Max

–

99.5 Min

EN AW-1070 A

0.20
Max

0.03
Max

0.03
Max

0.03
Max

0.25
Max

–

0.07
Max

0.03
Max

–

99.7 Min

EN AW-1100

Si+Fe 0.95 Max

–

0.05 Max

0.05 – 0.20

–

–

0.10 Max

0.05 Max

–

99.0 Min

EN AW-2011

0.40 Max

–

–

5.00 – 6.00

0.70 Max

–

0.30 Max

–

Bi : 0.20 – 0.60
Pb : 0.20 – 0.60

Remainder

EN AW-2014

0.50 – 1.20

0.20 – 0.80

0.40 – 1.20

3.90 – 5.00

0.70 Max

0.10 Max

0.25 Max

0.15 Max

–

Remainder

EN AW-2024

0.50 Max

1.20 -1.80

0.30 – 0.90

3.80 – 4.90

0.50 Max

0.10 Max

0.25 Max

0.15 Max

0.15 Max

Remainder

EN AW-3003

0.60 Max

–

1.00 – 1.50

0.05 – 0.20

0.70 Max

–

0.10 Max

–

0.15 Max

Remainder

EN AW-3103

0.50 Max

0.30 Max

0.90 – 1.50

0.10 Max

0.70 Max

0.10 Max

0.20 Max

0.10 Max

–

Remainder

EN AW-6101A

0.30 – 0.7

0.40 – 0.90

0.03 Max

0.05 Max

0.40 Max

–

–

–

0.10 Max

Remainder

EN AW-6005

0.60 – 0.90

0.40 – 0.60

0.10 Max

0.10 Max

0.35 Max

0.10 Max

0.10 Max

0.10 Max

–

Remainder

EN AW-6351

0.70 – 1.30

0.40 – 0.80

0.40 – 0.80

0.10 Max

0.50 Max

–

0.20 Max

0.20 Max

0.15 Max

Remainder

EN AW-6060

0.30 – 0.60

0.35 – 0.60

0.10 Max

0.10 Max

0.10 – 0.30

0.05 Max

0.15 Max

0.10 Max

–

Remainder

EN AW-6061

0.40 – 0.80

0.80 – 1.20

0.15 Max

0.15 – 0.40

0.70 Max

0.04 – 0.35

0.25 Max

0.15 Max

–

Remainder

EN AW-6063

0.20 – 0.60

0.45 – 0.90

0.10 Max

0.10 Max

0.35 Max

0.10 Max

0.10 Max

0.10 Max

–

Remainder

EN AW-6082

0.70 – 1.30

0.60 -1.20

0.40 – 1.00

0.10 Max

0.50 Max

0.25 Max

0.20 Max

0.10 Max

–

Remainder

ALUMINIUM PIPES

REPUTE STEEL & ENGG CO. IS ISO 9001:2008 CERTIFIED STOCKIEST, SUPPLIER AND EXPORTER OF ALUMINIUM PIPES, ALUMINIUM ALLOY PIPES & TUBES. REPUTE STEEL IS HUGE STOCKHOLDER OF ALUMINIUM SEAMLESS PIPES, ALUMINIUM ALLOY SEAMLESS PIPES, TUBES IN ALL DIMESIONS GRADES AND TEMPERS AS PER INTERNATIONAL STANDARDS.

ALUMINIUM PIPES ARE WIDELY DEMANDED IN ALL INDUSTRIES INCLUDING AEROSPACE INDUSTRIES, DEFENSE INDUSTRIES, FABRICATION, ENGINEERING EQUIPMENTS, CONSTRUCTION & DÉCOR INDUSTRIES DUE TO ITS BEST COROSSION RESISTANCE, DURABALITY, AND LIGHT WEIGHT.

Repute Steel is Stock holder of Major Brands of Aluminium Seamless Pipes in Tubes of Jindal Aluminium Ltd, HINDALCO, BANCO, AALCO, GALCO, BALCO, VIRGO and of many reputed extruders globally.

Specification:

Manufacturing Standard of AA Pipes

ASTM / ASME SB 221, ASTM B210 drawn, ASTM B241 extruded, AMS 4173, AMS 4080, AMS 4082, AMS4083, WW-T-700/6

Size Range

3 mm to 2500 mm ( 1\8” to 16” )

Thickness

0.5 mm To 50 mm ( 0.02” to 2”) Wall Thickness

Schedule 5, Schedule 10, Schedule 10S, Schedule 40, Schedule 40S, Schedule 80, Schedule 40S, other thickness as per demand

Grade of Aluminium Pipes

Aluminium & Aluminium Alloy Grades 1060, 1200, 1100, 2024, 2124, 3003, 3004, 5050, 5083, 5154, 5454, 5652, 5086, 5056, 5754, 6061, 6062, 6063, 7075

Type of Pipes

Extruded / Seamless / ERW / Welded / Fabricated / LSAW Pipes / Coiled / Drawn

Shape Form

Round, Square, Rectangular, Hydraulic Etc.

End of Pipes

Plain End, Beveled End, Treaded

Length, We provide

10 feet, 12 feet, 6 mtr, 3 mtr, 13 mtr & Cut Length

Aluminium Alloy

ASTM B210, ASTM B234, ASTM B241, ASTM B483; GB/T 6893-2000, GB/T 4437-2000: JIS H4080-2006

Aluminium Tube Temper

O, H12, H14, H16, H18, H22, H24, H26, H32, H112

Aluminium Tube Surface Finish

Anodized, Oxidation, electrophoresis coating, fluorine carbon spraying, powder coating, wood grain transfer printing, mechanical drawing, mechanical polishing, sand blasting, Polished, hair line, brush, Mill finished, Bright finish, paper interleaved

Other Service

Coatings

Anodizing

Powder Coating

Liquid Coatings

Chemical Finishes

Mechanical Finishes

Pretreatment

Features of Aluminium Alloy pipes

Resistance to corrosion

Longevity

Abrasion resistance

Tensile strength

Dimensionally correct

Contries We Exporting Aluminium Tube to

Brazil, Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Spain, Canada, USA, Egypt, Iran, India, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, Indonesia etc.

Aluminium Pipe Chart of Standard Sizes

NOMINAL PIPE SIZE

In INCH

OUTSIDE
DIA (OD)

In MM

WALL THICKNESS IN MM (T)

METRIC SIZE

SCH 10S

SCH 10

SCH
40 S

STD Weight

SCH 40

SCH 80s

SCH 80

1/4 "

13.72

1.65

2.24

2.24

2.24

3.02

3.02

3/8"

17.15

1.65

2.31

2.31

2.31

3.2

3.2

1/2"

21.34

2.11

2.77

2.77

2.77

3.73

3.73

15

3/4"

26.67

2.11

2.87

2.87

2.87

3.91

3.91

20

1"

33.4

2.77

3.38

3.38

3.38

4.55

4.55

25

1 1/4"

42.16

2.77

3.56

3.56

3.56

4.85

4.85

32

1 1/2"

48.26

2.77

3.68

3.68

3.68

5.08

5.08

40

2"

60.32

2.77

3.91

3.91

3.91

5.54

5.54

50

2 1/2"

73.02

3.05

5.16

5.16

5.16

7.01

7.01

65

3"

88.9

3.05

5.49

5.49

5.49

7.62

7.62

80

3 1/2"

101.6

3.05

5.74

5.74

5.74

8.08

8.08

90

4"

114.3

3.05

6.02

6.02

6.02

8.56

8.56

100

5"

141.3

3.4

6.55

6.55

6.55

9.52

9.52

125

6"

168.27

3.4

7.11

7.11

7.11

10.97

10.97

150

8"

219.07

3.76

8.18

8.18

8.18

12.7

12.7

200

10"

273.05

4.19

9.27

9.27

9.27

12.7

15.08

250

12"

323.85

4.57

9.52

9.52

10.31

12.7

17.47

300

14"

355.6

4.77

6.35

9.52

11.12

19.05

350

16"

404.6

4.77

6.35

9.52

12.7

21.44

400

18"

457.2

4.77

6.35

9.52

14.27

23.82

450

Other Standard Sizes of Aluminium Pipes In MM

7x5

14x12

25x19

38x32

50x44

85x75

8x6

19x17

32x28.5

45x25

51x25

101x91

10x8

22x19

38x34

50x46

76x70

115x97

12.5x10

25x22

38x34

50x46

76x57

160x140

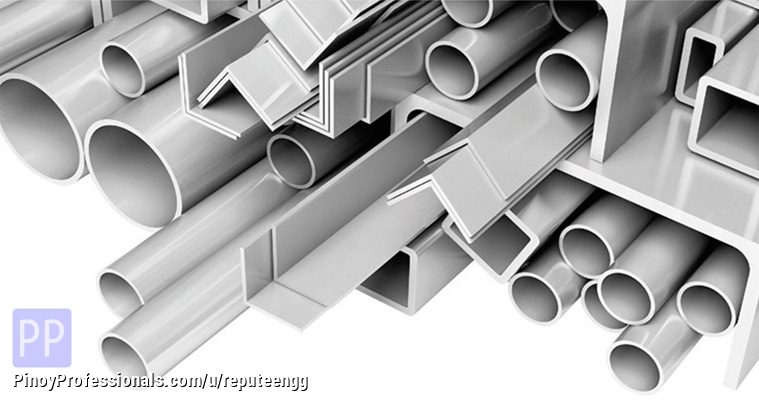

ALUMINIUM ANGLES ::

SIZE::

WIDTH:: 10 MM TO 200 MM EQUAL ANGLES & UN EQUAL ANGLES

THICKNESS:: 1 MM TO 20 MM THICKNESS

LENGTH:: 1 MTR, 3 MTR, 3.6 MTR, 10 FEET, 12 FEET, 6 MTR, CUT LENGTH

Finish :: Hot Rolled (HR), Cold Rolled (CR), Matt Finish, Hairline Finish, Round edge corner Angles, Square Edge Corner Angles,

Type :: Extrusion Angles, Rolled Angles, Annealed & Pickled Rolled Flats, Flat Bars, Plate Cut Flat Bars

Other Services:: Electroplating Coating Aluminium Angles for Commercial Application, Interior Design Application, Railing And Outfit Application. Chrome Coating, Nickel Plating, Anodizing, Powder Coating Aluminium Angles, Anodize, powder coating, PVDF coating Aluminium Angles, wood grain painting on Aluminium, matt Finish Coating Aluminium Angles

Features:

Well finished

Light weight

Durable

Rust & Corrosion Proof

Strong & Rigid

Various Grades of Aluminium Angles ::

ALUMINIUM COMMERICAL GRADE ANGLES

ALUMINIUM EC GRADE ANGLES

ALUMINIUM 1050 GRADE ANGLES

ALUMINIUM 1060 GRADE ANGLES

ALUMINIUM 1B GRADE ANGLES

ALUMINIUM 19501 GRADE ANGLES

ALUMINIUM 19500 GRADE ANGLES

ALUMINIUM 19600 GRADE ANGLES

ALUMINIUM 1100 GRADE ANGLES

ALUMINIUM 1C GRADE ANGLES

ALUMINIUM 19000 GRADE ANGLES

ALUMINIUM 5052 GRADE ANGLES

ALUMINIUM 52000A GRADE ANGLES

ALUMINIUM 5052 (N 4) GRADE ANGLES

ALUMINIUM 5086 (N5) GRADE ANGLES

ALUMINIUM 53000 GRADE ANGLES

ALUMINIUM 6061 (H20) GRADE ANGLES

ALUMINIUM 65032 GRADE ANGLES

ALUMINIUM 6063 (H9) GRADE ANGLES

ALUMINIUM 6101 (91 E) (63401) GRADE ANGLES

ALUMINIUM 6201 (64401) GRADE ANGLES

ALUMINIUM 6351 (H 30) (6430) GRADE ANGLES

ALUMINIUM 7039 (D74S) (74530) GRADE ANGLES

ELCTROPLATED ALUMINIUM ANGLES

ALUMINIUM ANGLES TEMPER: T4, T6, O, F

Aluminium ASTM B308 Extruded Angles

REPUTE STEEL & ENGG CO. IS ISO 9001:2008 CERTIFIED STOCK HOLDER OF HINDALCO, BALCO, JINDAL, VIRGO, BANCO, NALCO & INDIAN ORIGIN MILLS - ANGLES, FLAT BARS, CHANNELS, and STRUCTURAL SECTIONS

Aluminium Alloy Manufacturing Standard

AMS-QQ-A 200/8, ASTM B308

Aluminium Angle British Grades

H20, HE 20

Material Grades of Aluminium Alloy Angles

1060, 1200, 1100, 2024, 2124, 3003, 3004, 5050, 5083, 5154, 5454, 5652, 5086, 5056, 5754, 6061, 6062, 6063, 7075, etc.

Aluminium Angle Standard

ASTM, ASME, AMS, ASTM B308M, GB/T 3191, JIS H4040, ASTM B308, AMS QQ-A-200/9

Aluminium Angle Temper

T5, T6

Aluminium Angle Edge Shape

Square, Round, Flat, or according to  customers’ drawings

Aluminium Angle Color

Silvery white, black, golden, champagne, dark bronze or according to your requirement

Aluminium Angle Length

The Standard  length of export is 5.8m ,  Anodizing 6.5 meters at most, Mill finish 13 meters at most

Normal Anodizing thickness

8-12 micro

Normal Powder Coating thickness

60-100 micro

Deep processing

cutting, drilling, punching, bending etc.

Aluminium Angle Surface Finish

Anodized, Oxidation, electrophoresis coating, fluorine carbon spraying, powder coating, wood grain transfer printing, mechanical drawing, mechanical polishing, sand blasting, Polished, hair line, brush,

Mill finished, Bright finish, paper interleaved

Surface treatment of Angles

Nature, Black painting, Transparent oil, rust-proof black oil or hot-dip galvanized

ASTM B308 Alloy Angle Outer Packing

Export standard, wooden pallet

Here are 6 different types of finishes for extruded Aluminum Angle:

1. Anodizing

2. Powder Coating

3. Liquid Coatings

4. Chemical Finishes

5. Mechanical Finishes

6. Pretreatment

We Export Aluminium Angle to

USA, Britain, Iran, South Africa, Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Canada, USA, Egypt, Iran, India, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, Spain, Vietnam, Cambodia  etc.

ALUMINIUM ( C CHANNEL ISMC)

Material :: Commercial, Aluminium, Alloy

Length :: 3 MTR, 6 MTR, 13 Mtr, 10 Ft, 12 Ft

Sizes :: 10 MM TO 300 MM

Thickness :: 1 MM TO 20 MM

Material OF Aluminum C Channel

1060, 1200, 1100, 2024, 2124, 3003, 3004, 5050, 5083, 5154, 5454, 5652, 5086, 5056, 5754, 6061, 6062, 6063, 7075, etc.

Aluminium Structural Channel  Standard

ASTM, ASME, AMS, ASTM B308M, GB/T 3191, JIS H4040, ASTM B308, AMS QQ-A-200/9

Aluminium channel Temper

T5, T6

Aluminium Channel Edge Shape

Square, Round, Flat, or according to  customers’ drawings

Aluminium Channel Color

Silvery white, black, golden, champagne, dark bronze or according to your requirement

Aluminium Channel Length

The Standard  length of export is 5.8m ,  Anodizing 6.5 meters at most, Mill finish 13 meters at most

Normal Anodizing thickness

8-12 micro

Normal Power Coating thickness

60-100 micro

Deep processing

cutting, drilling, punching, bending etc.

Aluminium Channels Surface

Anodized, Oxidation, electrophoresis coating, fluorine carbon spraying, powder coating, wood grain transfer printing, mechanical drawing, mechanical polishing, sand blasting, Polished, hair line, brush,
Mill finished, Bright finish, paper interleaved

Surface treatment of Channel

Nature, Black painting, Transparent oil, rust-proof black oil or hot-dip galvanized

Types of finishes for extruded Aluminum Structural C Channel

Anodizing

Powder Coating

Liquid Coatings

Chemical Finishes

Mechanical Finishes

Pretreatment

We Export Aluminium Structural C Channels to

Dubai, Russia, Spain, Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Spain, Canada, USA, Egypt, Iran, India, Kuwait, Oman, Kuwait, Peru, Mexico, Iraq, Vietnam, Malaysia, etc.

Brands of Aluminium Section C channel

BALCO, HINDALCO, NALCO, JINDAL, VIRGO

Aluminium Flat Bars & Aluminium Alloy Flat Bars ::

Aluminium Patta, Aluminium Patti, Aluminium Flat Patti, Extrusion Flat Bars, Rolling Flat Bars,

Grades of Aluminium Alloy Flat Bars::

Aluminium 1200 Flat Bars,

Aluminium 2014 Flat Bars, 2024 Flat Bars,

Aluminium 5052 Flat Bars, 5083 Flat Bars,

Aluminium 5086 Flat Bars, 6061 Flat Bars,

Aluminium 6082 Flat Bars, 6063 Flat Bars,

Aluminium 7075 Flats and Flat Bars, HE9 Flat Bars, HE 30 Flat Bars, HE20 Flat Bars

Dealers, Distributors, Wholesalers, Traders and Exporters. We Deal Of Make Hindalco Flat Bars, Balco Flat Bars, Nalco Flat Bars, Jindal Flat Bars, Virgo Flat Bars, Commercial Flat Bars & Imported Flat Bars Readily Available In Stock.

Size Range ::

Length :: 6 Mtr, 3 Mtr, 1.5 Mtr, Cut to size as per your requirement…

Width :: 5 mm to 300 mm

Thickness :: 0.1 mm to 200 mm

Finish :: Hot Rolled (HR), Cold Rolled (CR), Matt Finish, Hairline Finish

Round edge corner Flat Bars, Square Edge Corner Flat Bars, Electroplated Finish Colour

Standard :: ASTM B221, ASME SB 221, EN573, and EN485

ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE

Type :: Rolled Flat Bars, Annealed & Pickled Rolled Flats, Extrusion Flat Bars, Forged Flat Bars, Plate Cut Flat Bars, Electroplated Flat Bars, Nickel Plates, Copper Plated, Silver Plated, Anodize Aluminium Flat Bars, Bright Chrome Plated Aluminium Flat Bars, Power Coated Aluminium Flat Bars.

Stockiest, Distributors & Exporters of Major Brands Aluminium Flat Bars ::

• Kamensk Uralsky Metallurgical Works (KUMZ)
• Alcoa Aluminium
• Hindalco
• National Aluminium Company Limited (NALCO)
• Bharat Aluminium Company Ltd. (BALCO)
• Galco
• Virgo Aluminium Limited
• Matrix
• Banco Aluminium Limited
• Jindal Aluminium Limited

Aluminium Angle British Grades

H20, HE 20

Material Grades of Aluminium Alloy Flats

1060, 1200, 1100, 2024, 2124, 3003, 3004, 5050, 5083, 5154, 5454, 5652, 5086, 5056, 5754, 6061, 6062, 6063, 7075, etc.

Aluminium Flat Bars Standard

ASTM, ASME, AMS, ASTM B308M, GB/T 3191, JIS H4040, ASTM B308, AMS QQ-A-200/9

Aluminium Angle Temper

T5, T6

Aluminium Flat Bars Edge Shape

Square, Round, Flat, or according to  customers’ drawings

Aluminium Flat Bars Color

Silvery white, black, golden, champagne, dark bronze or according to your requirement

Aluminium Flat Bars Length

The Standard  length of export is 5.8m ,  Anodizing 6.5 meters at most, Mill finish 13 meters at most

Normal Anodizing thickness

8-12 micro

Normal Powder Coating thickness

60-100 micro

Deep processing of Flats

cutting, drilling, punching, bending etc.

Aluminium Flat Bars Surface Finish

Anodized, Oxidation, electrophoresis coating, fluorine carbon spraying, powder coating, wood grain transfer printing, mechanical drawing, mechanical polishing, sand blasting, Polished, hair line, brush,

Mill finished, Bright finish, paper interleaved

Surface treatment of Flat Bars

Nature, Black painting, Transparent oil, rust-proof black oil or hot-dip galvanized

Aluminium Alloy Flat Bar Packing

Export standard, wooden pallet

Different types of finishes for extruded Aluminum Flat Bars:

1. Anodizing

2. Powder Coating

3. Liquid Coatings

4. Chemical Finishes

5. Mechanical Finishes

6. Pretreatment

We Export Aluminium Flat Bars

USA, Britain, Iran, South Africa, Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Canada, USA, Egypt, Iran, India, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, Spain, Vietnam, Cambodia  etc.
